SEMI HYDRAULIC WALK BEHIND ROLLERS

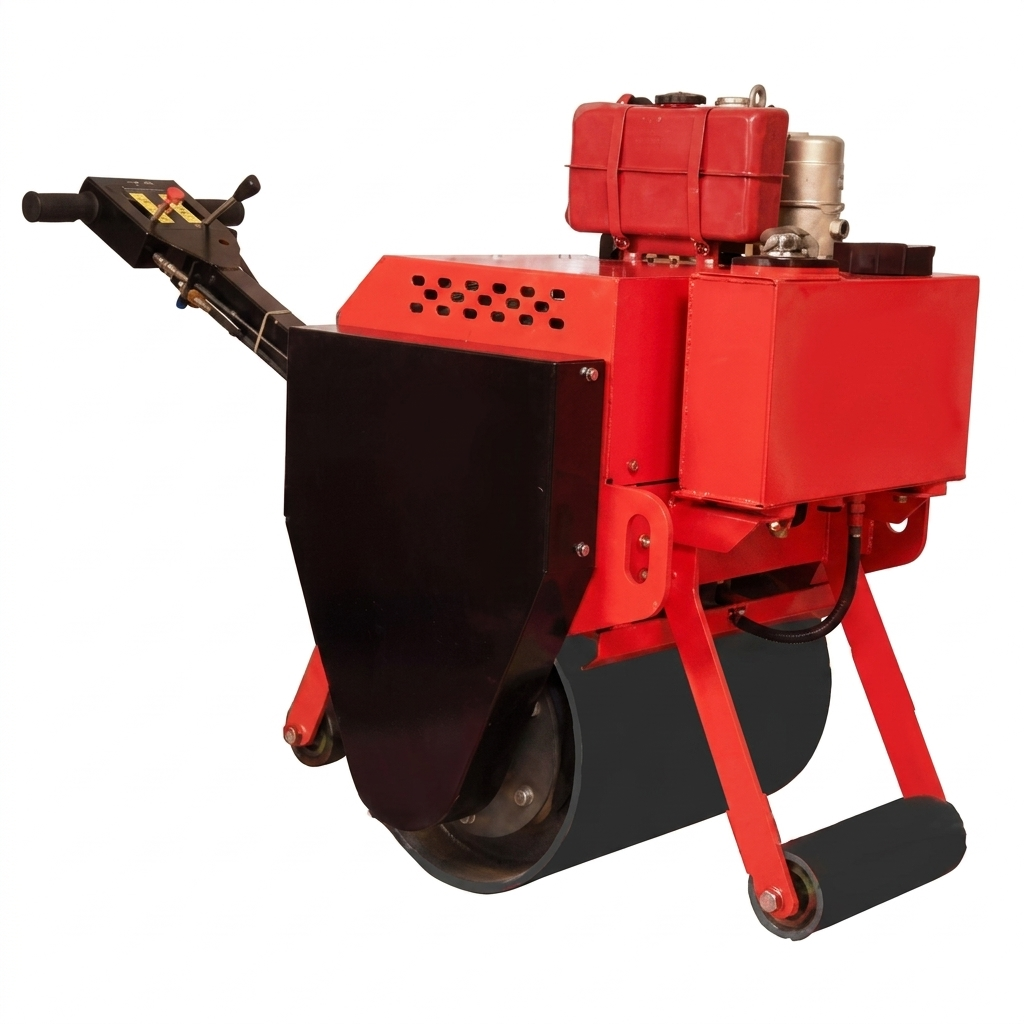

SINGLE DRUM – SEMI HYDRAULIC
Comprex Semi Hydraulic Walk Behind Double Drum and Single Drum Vibratory Rollers are the simplified version of Vibratory Rollers. These machines optimally compact granular soils and asphalt surfaces. These machines are fully hydraulic in vibration and semi hydraulic in travel. Automatic hydrostatic brakes ensure easy operation and higher safety.
- SINGLE DRUM TYPE – Reliable Greaves engine, Vibration damping handle, Protective tubular framework, Good compaction output
SPECIFICATIONS – SEMI HYDRAULIC WALK BEHIND ROLLER
| rope start & electric starter | rope start | ||
|---|---|---|---|
| Fuel | Diesel | Diesel | |
| Engine Power | HP | 10 | 5 |
| Operating Weight | kg | 550 | 330 |
| Max Speed | km/hr | 0-3 | |
| Drum Size | mm | Dia: 400, Width: 600 | |
| Centrifugal Force | kgf | 2000 | 1500 |
| Static Linear Load | kg/cm | 4.2 | 2.1 |
| Frequency | Hz | 70 | |
| Amplitude | mm | 0.43 | |
| Gradeability | % | 30 | |
| Sprinkler System | Gravity | ||
| Vibration | On both drums | Vibration is through centrifugal clutch, belts and eccentric masses | |
| Travel | Semi hydraulic | ||
| Hydraulic Pump | Variable displacement piston pump | ||
| Water Tank | Ltr | 20 | 17 |
| Hour Meter | Electro mechanical | Not available | |
| Damper | 6 nos. rubber | ||
