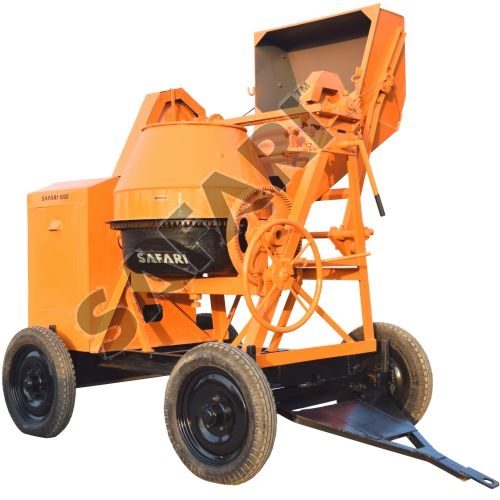

SAFARI 1000 C
ROBUST, DURABLE, HIGH-PERFORMANCE CONCRETE MIXER
- 10/7 CFT capacity with tilting drum type
- Powered by 6.5 HP air-cooled HSD diesel engine or 5 HP electric motor
- Heavy-duty chassis with jack support on all four sides for machine leveling
SPECIFICATIONS – SAFARI 1000 C
| Model No. | SAFARI 1000 C |
|---|---|
| Capacity | 10/7 cft |
| Prime Mover | 6.5 HP air cooled HSD diesel engine / 5 HP electric motor |
| Hopper | 3.15 mm thick M.S. Hopper mechanically operated, clutch type |
| Wire Rope | Usha Martin 10 mm – 6 × 36 FMC |
| Wheels | 600 × 16 pneumatic type with hub & bearing system, and pressed steel plate rims – 4 Nos |
| Chassis | Heavy Duty M.S. 125 × 65 mm Channel chassis equipped with jack on all four sides for levelling the machine |
| Handi Yoke | 100 × 100 × 5 mm seamless M.S. pipe, Bearing System |
| Drive Chain | Rolon brand |
| Mixing Drum and Blades | Heavy Duty CI Lower drum 3.15 mm M.S. upper drum and heavy duty M.S. blades for mixing |
| Drum Type | Tilting |
| Dimensions | L 2620 × W 2180 × H 2825 mm |
| Weight | 1450 kg |
