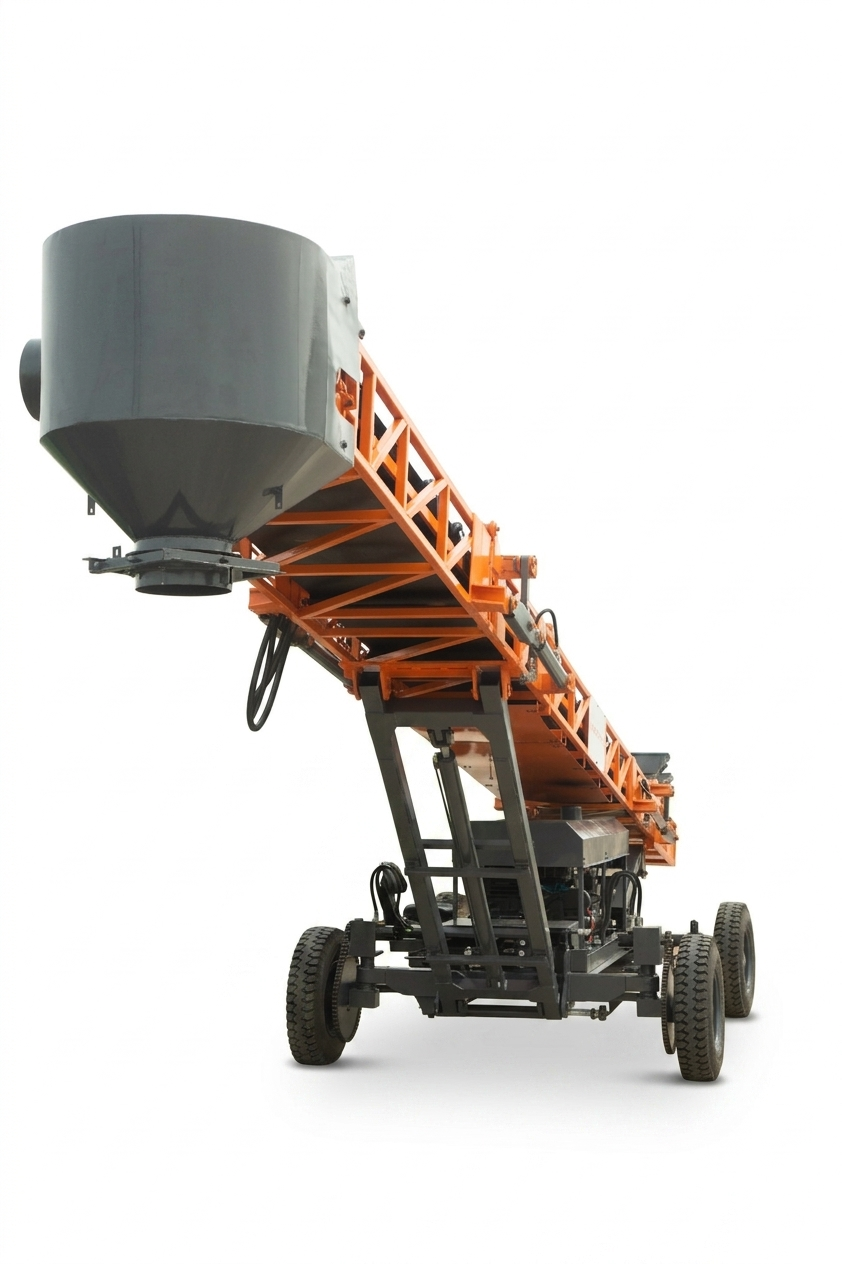

MOBILE CONCRETE PLACER
The Mobile Concrete Placer is a self-propelled and highly efficient solution for transporting and placing concrete at desired heights. Designed with heavy-duty telescopic frames and hydraulic systems, it ensures smooth operation and high productivity for construction and material stacking applications.
Applications
- Bridge Concreting
- Dam Projects
- Wind Mill Projects
- Trench Work
- Canal Concreting
- Pre-Casting Yards
- Heighted Mould Concreting
- Material Stacking
- Sand, Aggregates & Coal Stacking
- Retention Wall
Model Dimensions
| Model | E1 | E2 | B | C | D | L | H1 | H2 | F1 | F2 | W |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DIMCP 42/650 | 6 | 4 | 3 | 43 | 42 | 45 | 7 | 21 | 21 | 16 | 8 |
| DIMCP 48/650 | 6 | 4 | 3 | 48 | 48 | 50 | 8 | 24 | 25 | 19 | 8 |
| DIMCP 56/650 | 6 | 4 | 3 | 56 | 56 | 58 | 8 | 28 | 29 | 22 | 8 |
| DIMCP 66/650 | 6 | 4 | 3 | 67 | 65 | 67 | 10 | 33 | 34 | 28 | 8 |
| Model | TL | TW | TH1 | TH2 |
|---|---|---|---|---|
| DIMCP 42/650 | 28 | 8 | 11 | 8 |
| DIMCP 48/650 | 31 | 8 | 11 | 8 |
| DIMCP 56/650 | 38 | 8 | 12 | 8 |
| DIMCP 66/650 | 48 | 8 | 13 | 8 |
Technical Specifications
| Model | DIMCP 42/650 | DIMCP 48/650 | DIMCP 56/650 | DIMCP 66/650 |
|---|---|---|---|---|
| Output Capacity | 50 m3 | 50 m3 | 50 m3 | 50 m3 |
| Oil Tank Capacity | 80 Litre | 80 Litre | 80 Litre | 80 Litre |
| Diesel Tank Capacity | 30 Litre | 30 Litre | 30 Litre | 30 Litre |
| Inlet Hopper | 0.3 m3 | 0.3 m3 | 0.3 m3 | 0.3 m3 |
Design Parameters
| Design Parameter | ||||
|---|---|---|---|---|
| Travel Speed | 5 km/hr | 5 km/hr | 5 km/hr | 5 km/hr |
| Wheel Base Pneumatic Tyres (7.50” X 16”) | 4 Nos. | 4 Nos. | 4 Nos. | 4 Nos. |
| Belt Width | 850 mm | 850 mm | 850 mm | 850 mm |
| Total Weight | 4000 kg | 4100 kg | 4500 kg | 5500 kg |
Prime Mover
| Engine : Air Cooled Diesel Engine | 25 HP | 25 HP | 25 HP | 31 HP |
