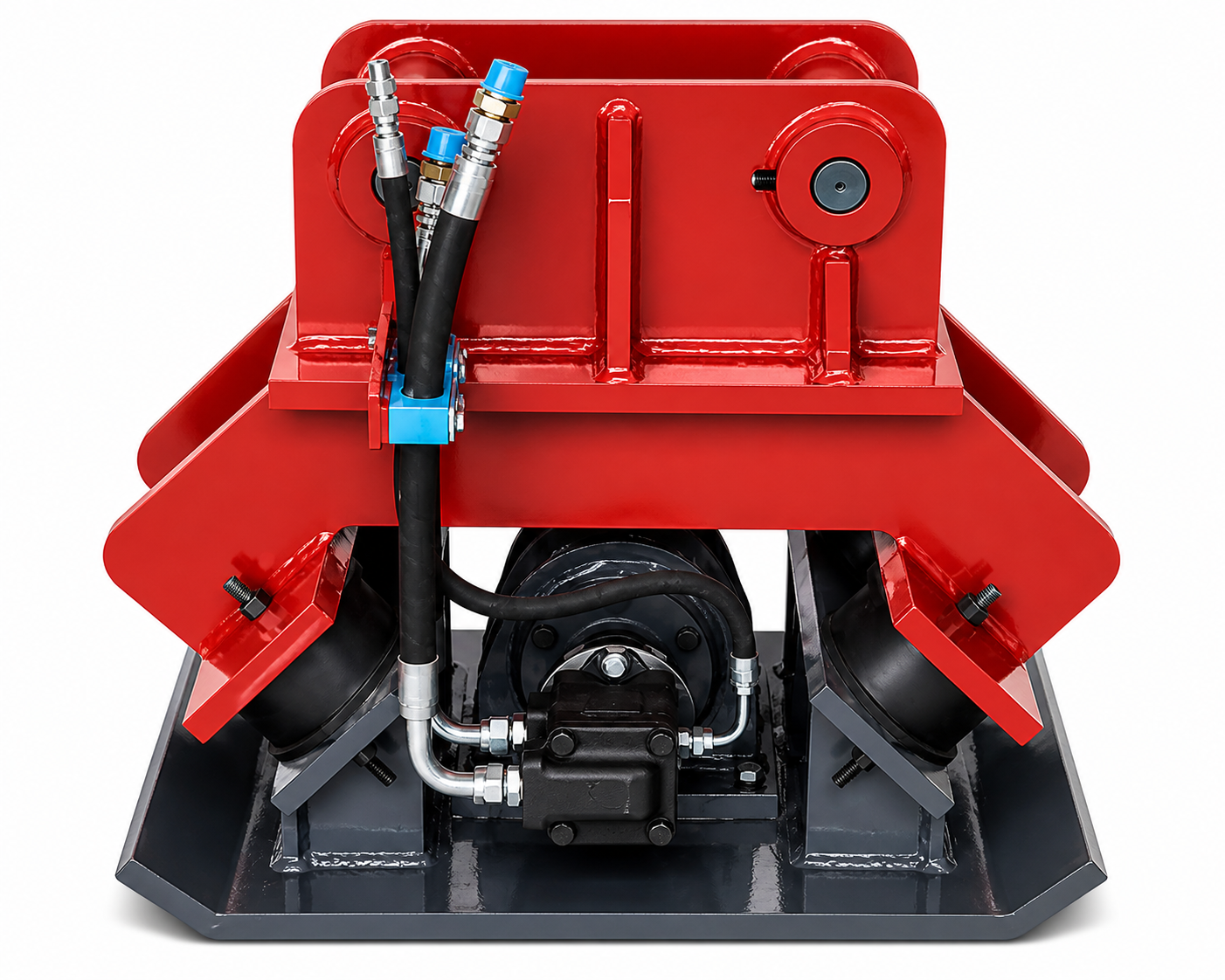

Excavator Attachment Plate Compactor
The Excavator Attachment Plate Compactor is designed for efficient soil compaction in trenches, slopes, and confined areas. It delivers high dynamic force and consistent vibration, making it ideal for construction and infrastructure projects.
Technical Specifications
| Model No. | DIP 100 | DIP 200 | DIP 400 |
|---|---|---|---|
| Recommended Carrier Weight | 5 to 10 Tons | 10 to 15 Tons | 15 to 30 Tons |
| Operating Weight | 362 kg | 650 kg | 1000 kg |
| Flow Range | 49-91 LPM | 49-114 LPM | 91-159 LPM |
| Dynamic Force | 2.9 Ton | 5 Ton | 9.5 Ton |
| Frequency | 2000 vpm | 2000 vpm | 2000 vpm |
| Base Plate Size | 600 mm x 800 mm | 670 mm x 880 mm | 800 mm x 1100 mm |
| Height | 570 mm | 620 mm | 650 mm |
Model Dimensions (L × W × H × C)
| Model No. | L | W | H | C |
|---|---|---|---|---|
| DIP 100 | 800 | 600 | 570 | 465 |
| DIP 200 | 880 | 670 | 620 | 465 |
| DIP 400 | 1100 | 800 | 650 | 465 |
Note: All dimensions are in mm
Applications
- Trench compaction
- Slope and embankment compaction
- Foundation and backfill compaction
- Road construction and repair work
- Confined areas where rollers cannot operate
Key Features & Benefits
- Compacts spaces where no other compactor can reach
- 3 different models available for various requirements
- Oil bath type compaction system with long maintenance interval (365 days)
- Single hose block design prevents hose damage
- Self-aligning bearing for longer service life
- High compaction efficiency with quick results
